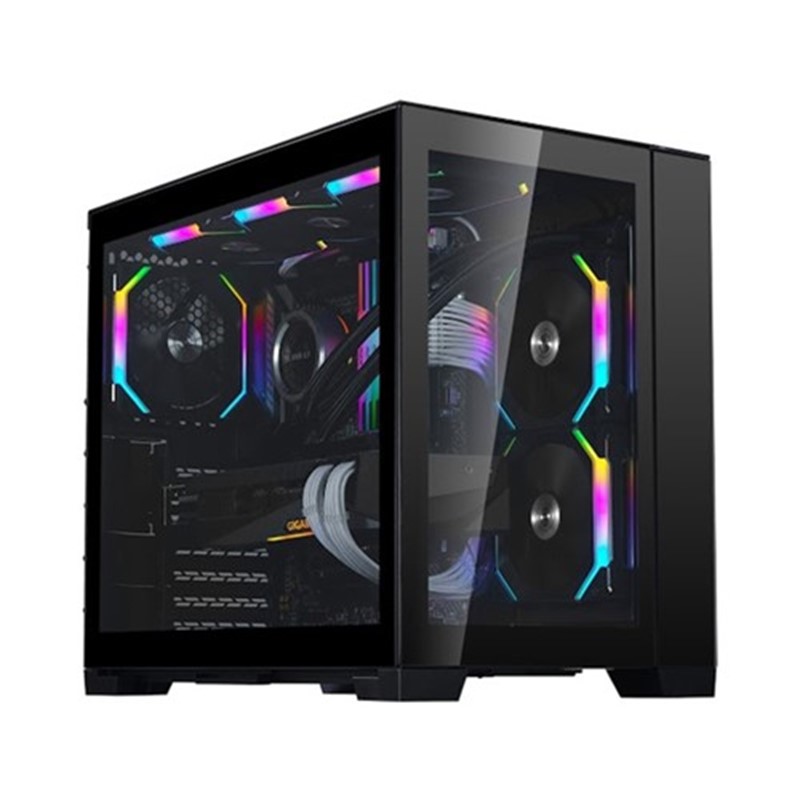

LIAN LI O11 Dynamic-Mini ATX MID Tower Gaming PC Case
Features:
O11D MINI Adding To The O11 Dynamic Series, The Classic And Modern Looking.
A Case That Would Accommodate The Maximum Number Of Water-Cooling Configurations Without Being Oversized.
With A Modular Back Panel Design, The User Has The Option To Choose From 3 Slots/ 5 Slots/ 7 Slots I/O Shield To Optimize The Case To The Configuration Of The User’s Choice.
Supports Mini-ITX, Micro-ATX, ATX, And E-ATX Motherboard Sizes.
Supports Only SFX Power Supply.
Options
Price
Prices depend on your account and the quantity you buy, so they are not published.
Description
LIAN LI O11-Dynamic-Mini MID Tower Gaming Case - Snow
Side Radiator Configuration With Long GPU
The 30mm Space Behind The Side Fan / Radiator Bracket Allows Users To Mount Fans, Thus Efficiently Intake Fresh Air To Directly Cool The Radiator And Leaves Enough Space To Install Long GPUS In This Compact Case.
Configuration Of Your Choice
Decide How Many Expansion Slots You Need. Calculate The Size Of Your Fans & Accessories.
Pick Your Motherboard Type. 3 Kinds Of Back Panels To Meet Your Demand.
Modular Pump Stand
Friendly To Custom Water-Cooling Users, The Three Different Pump Stands Included Can Accommodate Different Scenarios.
O11D Mini Snow Edition
Fully White Version That Isn’t Missing Any Invisible Details.
As A Member Of The O11 Family
The O11d Mini Is Designed To Support A Maximum Number Of Radiators To Optimize The Water-Cooling Potential, And This Even With A Smaller Frame.
Dual-Chamber Design For Cable Management
Carried From The Design Of The O11D Series, Cables Quickly Pass To The Second Chamber Through Rubber Grommets. Multiple Tie Points And Velcro Strap Channels Are Provided To Tidy Up The Cables While The SSD Mounting Bar Helps Keep The Loose Cables All Snuggled Up To Ensure A Clean Look And Prevent The Right-Side Panel From Not Closing Or Bulging.
Complete Dust Protection
All 3 Ventilation Intake Sides Are Equipped With Magnetic Dust Filters And A Removable Dust Tray To Prevent The Dust From Entering The Case.
Specification:
DIMENSIONS
(D)420mm X (W)269.5mm X (H)380mm
MOTHERBOARD
ATX/ Micro-ATX/ Mini-ITX
PSU
SFX/ SFX-L
MATERIAL
Steel
4 mm Tempered Glass
2mm Aluminum (top and left panel)
FAN SUPPORT
Top: 3x 120mm or 2x 140mm
Side: 2x 120mm or 2x 140mm
Bottom: 3x 120mm or 2x 140mm
Rear: 1x 120mm
RADIATOR SUPPORT
Top: 360mm or 280mm or 240mm radiator
Side: 240mm or 280mm radiator
Bottom: 360 or 280mm or 240mm radiator
GPU LENGTH CLEARANCE
395mm
CPU COOLER HEIGHT CLEARANCE
170mm
VGA Length
370mm
DRIVES
Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD)
EXPANSION SLOTS
3 or 5 or 7 slots (depends on back panel)
IO PORTS
2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button
DUST FILTERS
1 x Top, 1 x Bottom, 2 x Side
Product details
- Product code
- G99.O11DMI-X.00
- Option
- Black
- Sold in
- EA
- Smallest order
- —
- Order in multiples of
- Any quantity
Quantities, pack sizes and availability are confirmed when you add the line and again when your order is placed.
