Colorful BATTLE-AX B850M-T WIFI V14 Motherboard

Colorful BATTLE-AX B850M-T WIFI V14 Motherboard

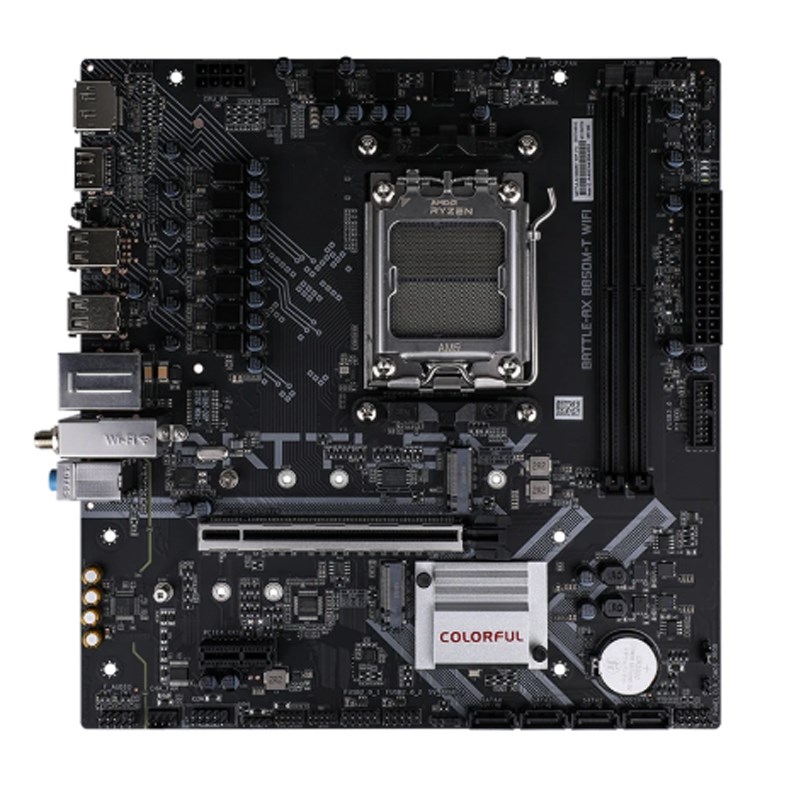

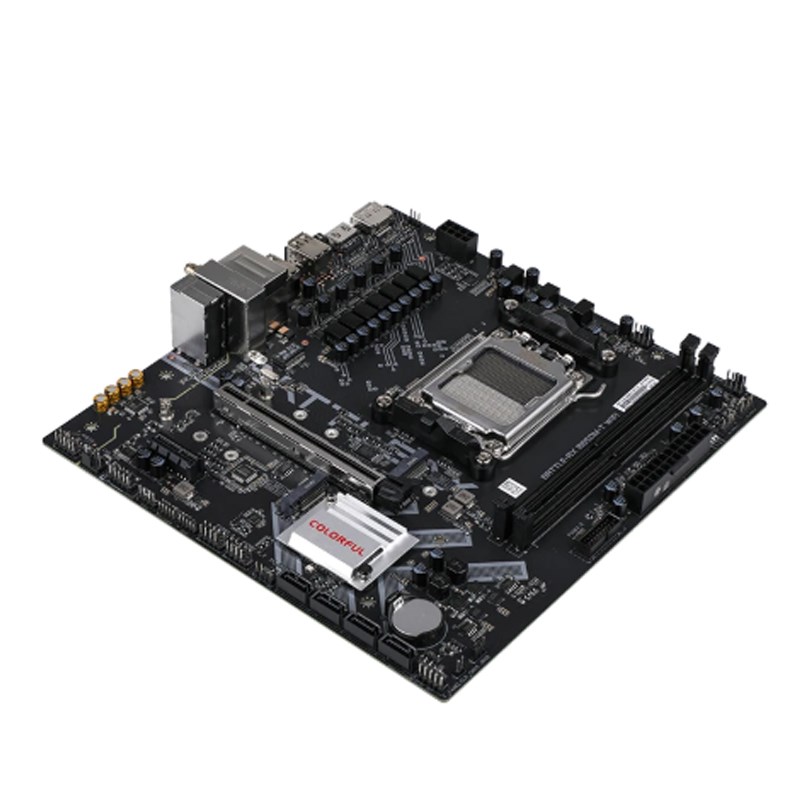

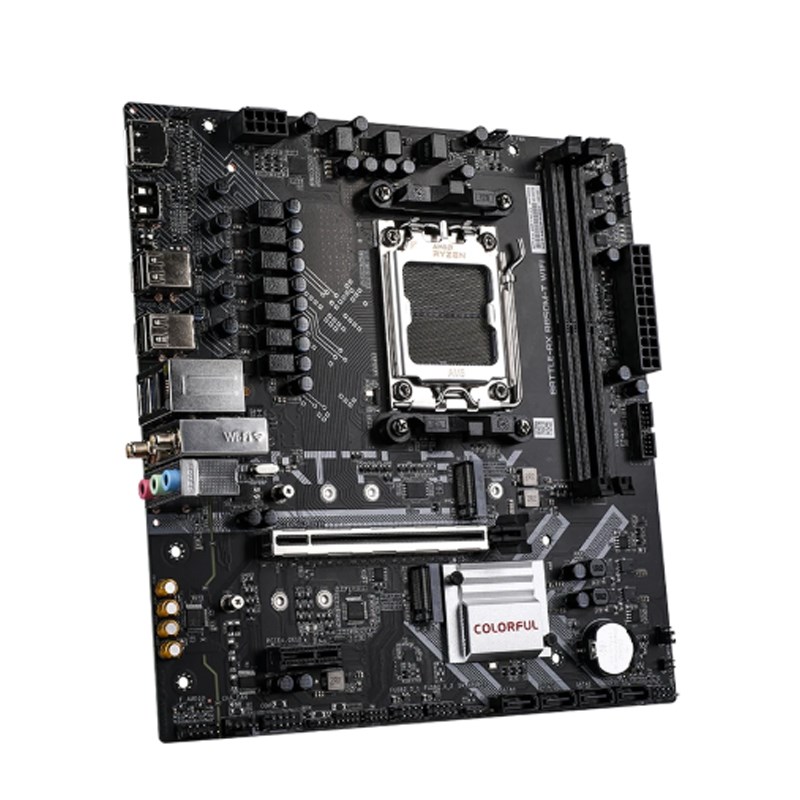

Colorful BATTLE-AX B850M-T WIFI V14

Provides two M.2 SSD slots

Equipped with a 2.5G wired network card and a WiFi 6E wireless network card, supporting Bluetooth 5.3

Supports iGame Center lighting control software for simultaneous adjustment of the lighting effects of the heatsink, cooling fan, and memory

The I/O backplane supports one-click BIOS upgrades

Six major protection technologies ensure more stable product operation

200-step rigorous testing process ensures quality

PCB atomization process is fully upgraded

What are the benefits of Colorful Colorful BATTLE-AX B850M-T WIFI V14 Motherboard ?



• Two M.2 SSD slots for flexible storage expansion

• Fast connectivity with 2.5G wired network and WiFi 6E

• Bluetooth 5.3 for improved wireless device support

• Synchronized lighting control via iGame Center software

• One-click BIOS upgrade for easy system updates

• Enhanced stability with six protection technologies

• High reliability with 200-step quality testing

• Upgraded PCB design for better durability and performance

Specification Model BATTLE-AX B850M-T WIFI V14 Product Series BATTLE-AX series Chipset AMD B850 Processor Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard Memory 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory)
Support DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
Support Extreme Memory Profile (XMP) memory technology
Support EXtended Profiles for Overclocking (EXPO) memory technology
Supports dual channel memory technology SATA Ports 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices
M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
( Is it supported PCIe 5.0 is related to the CPU used with the motherboard)
Ryzen 9000 series: RAID 0/1/5/10
Ryzen 8000 series: RAID 0/1

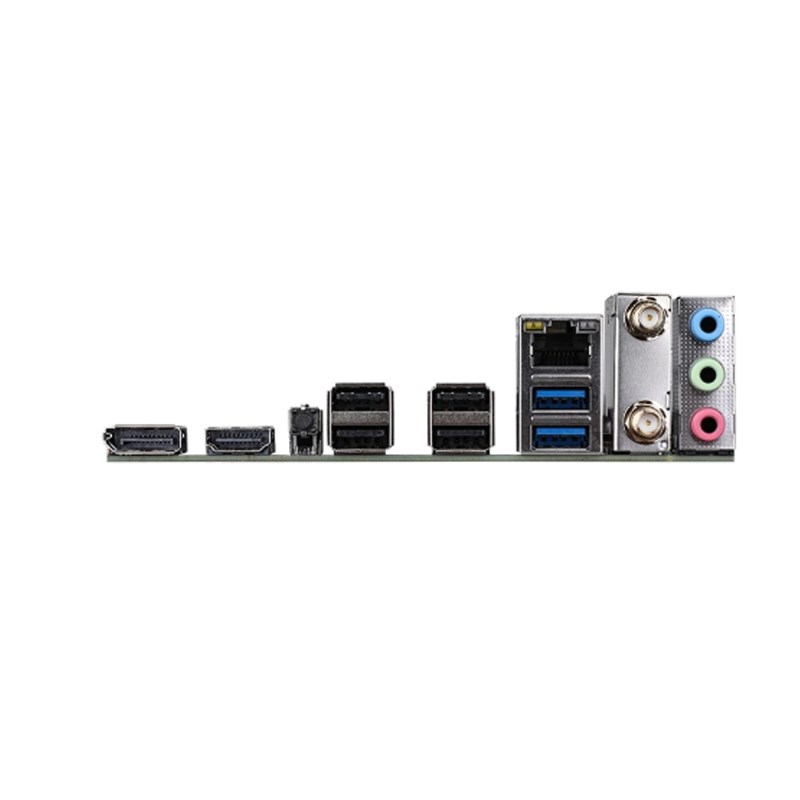

Ryzen 7000 series: RAID 0/1/10 Board I/O Rear I/O :
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 5Gbps Type-A interfaces
-1×DP 1.2 interface, supporting up to 4K 60Hz resolution
-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
-1×2.5G network interface
-2×Wi-Fi 6E antenna interfaces
-1×BIOS update button
-3×Audio interfaces (audio input/audio output/microphone)
On board :
-2×USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
-1×CPU fan pin
-1×System fan pin
-1×Water cooling pump pin
-3×5V 3-pin ARGB pins
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×COM port pin
-1×Clear CMOS jumper
-1×BIOS burner pin
-1×RGB lighting effect control jumper
-1×POST card pin Expansion Slots 1 PCIe 5.0 x16 slot
1 PCIe 4.0 x1 slot BIOS 256M UEFI, support multiple languages Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring LAN RTL8125BG 2.5Gbit network card, MediaTek MT7902-D Wi-Fi 6E wireless network card, Bluetooth 5.3 Audio Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels Configuration M-ATX
230mm x 220mm
