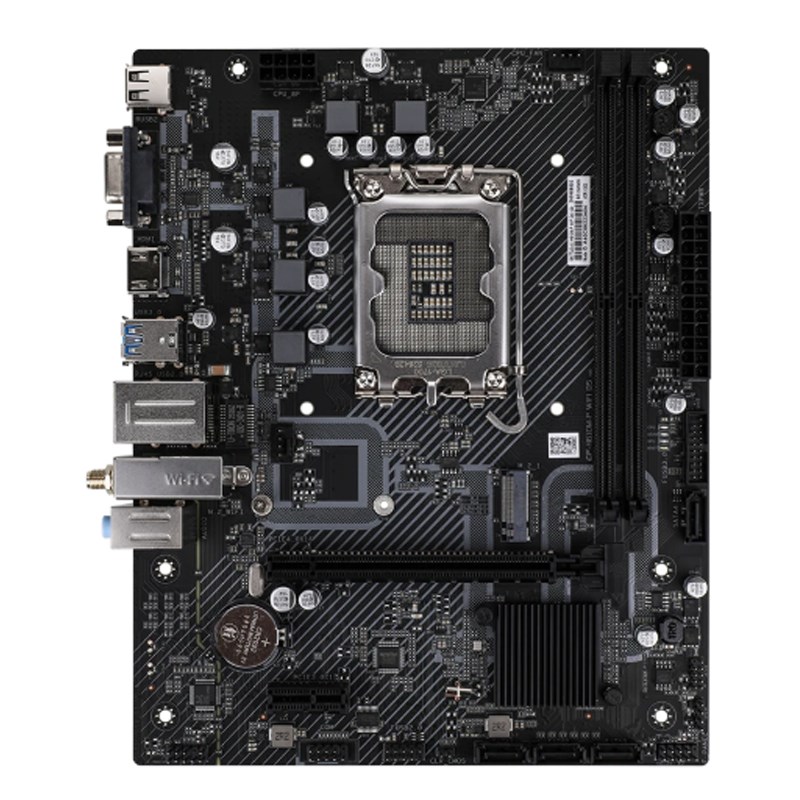

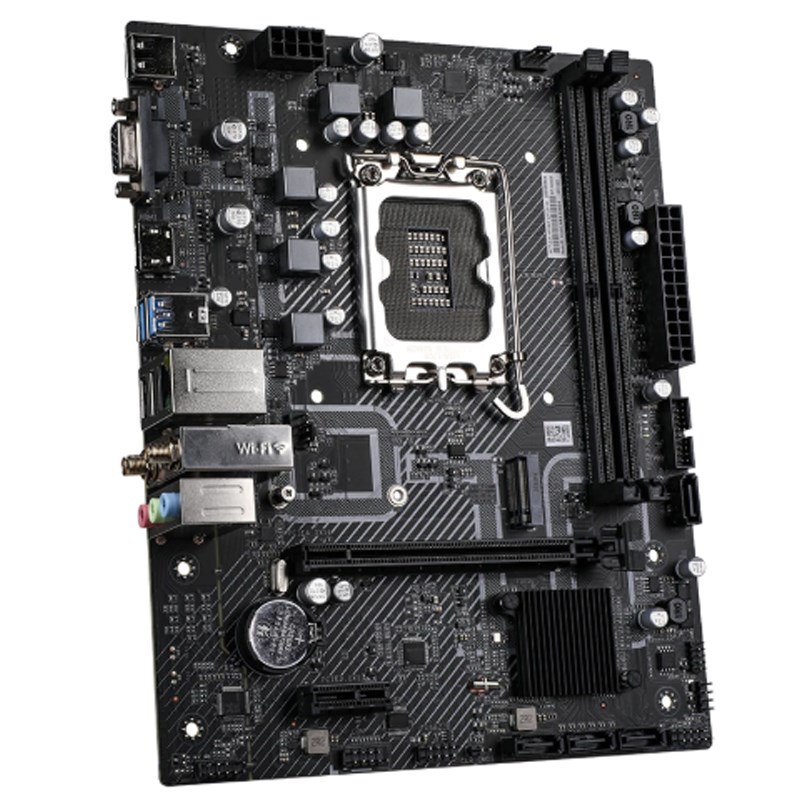

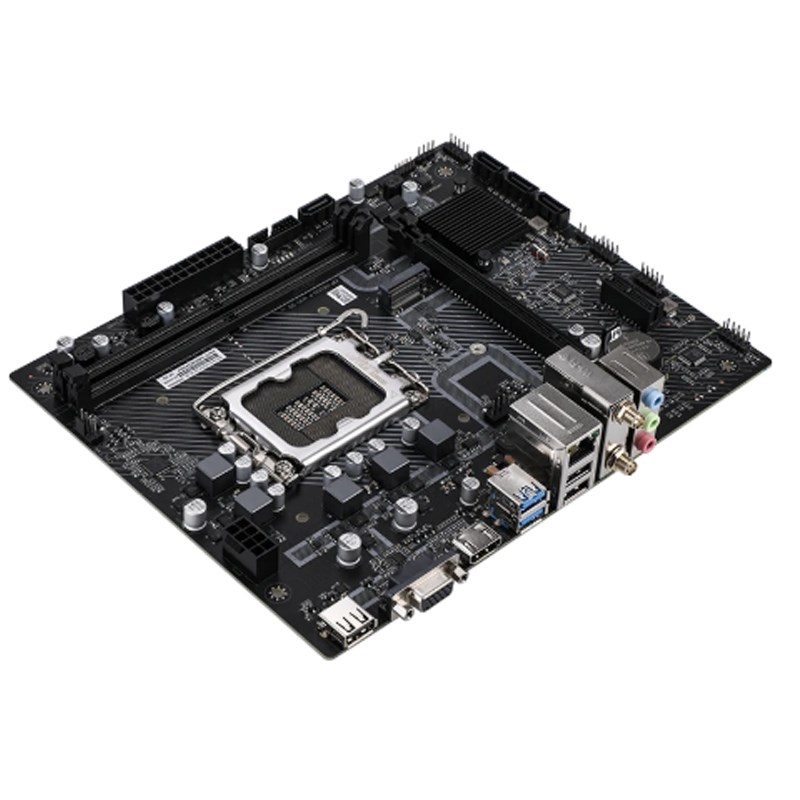

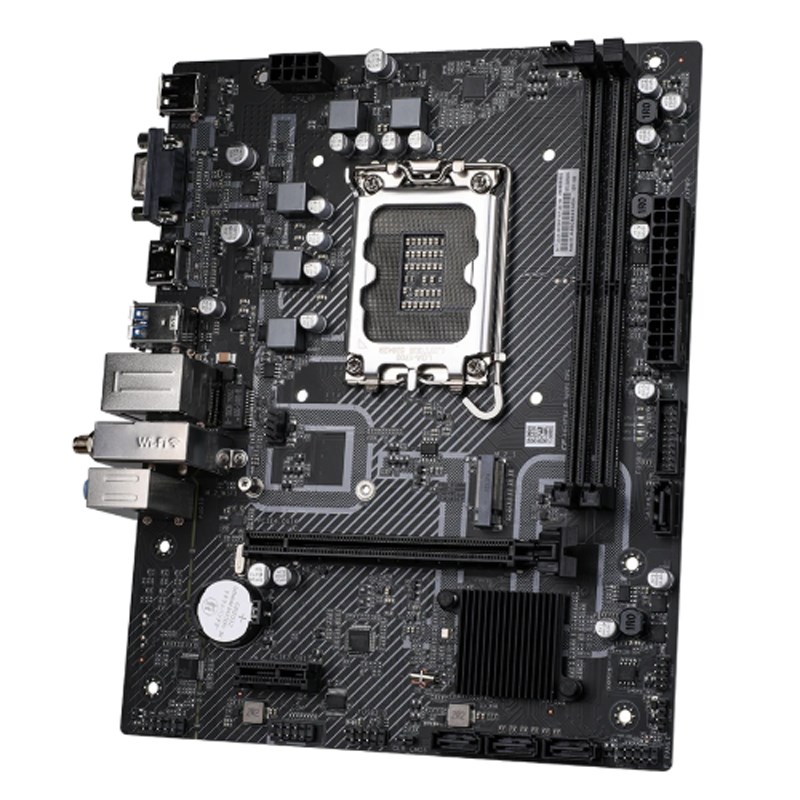

Colorful BATTLE-AX H610M-P WIFI D5 V20 DDR5 M-ATX Gaming Motherboard

Colorful BATTLE-AX H610M-P WIFI D5 V20 DDR5 M-ATX Gaming Motherboard

Colorful BATTLE-AX H610M-P WIFI D5 V20 DDR5

Intel H610 chipset

Supports dual-channel DDR5-5600MHz memory

Provides one PCIe 3.0 x4 M.2 SSD slot

Equipped with HDMI and VGA display ports

Equipped with a Realtek 8111H Gigabit Ethernet and an AX101 WiFi 6 wireless card, and supports Bluetooth 5.2

Equipped with a Realtek ALC897 audio chip, supporting up to 5.1 channels

Rear: 2 USB 3.2 Gen 1 Type-A ports, 3 USB 2.0 ports

Front: 2 USB 3.2 Gen 1 Type-A ports, 2 USB 2.0 ports

What are the benefits of Colorful BATTLE-AX H610M-P WIFI D5 V20 DDR5 Gaming Motherboard ?

• Supports Intel H610 chipset for system compatibility

• Dual-channel DDR5 memory support up to 5600MHz

• M.2 PCIe 3.0 slot for SSD storage

• HDMI and VGA ports for display connectivity

• Gigabit Ethernet and WiFi 6 for fast networking

• Bluetooth 5.2 support for wireless connections

• 5.1 channel audio support for enhanced sound

• Multiple USB ports for connecting peripherals



Specification Model BATTLE-AX H610M-P WIFI D5 V20 Product Series BATTLE-AX series Chipset Intel H610 Processor Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor Memory 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory)
Paired with 13th generation Intel Core i9/i7 processors:
Support DDR5-5600/5400/5200/5000/4800MHz memory
Paired with 13th generation Intel Core i5/i3 processors and 12th generation Intel Core、Pentium And Cylon processors
Support DDR5-4800MHz memory
Supports dual channel memory technology SATA Ports 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces

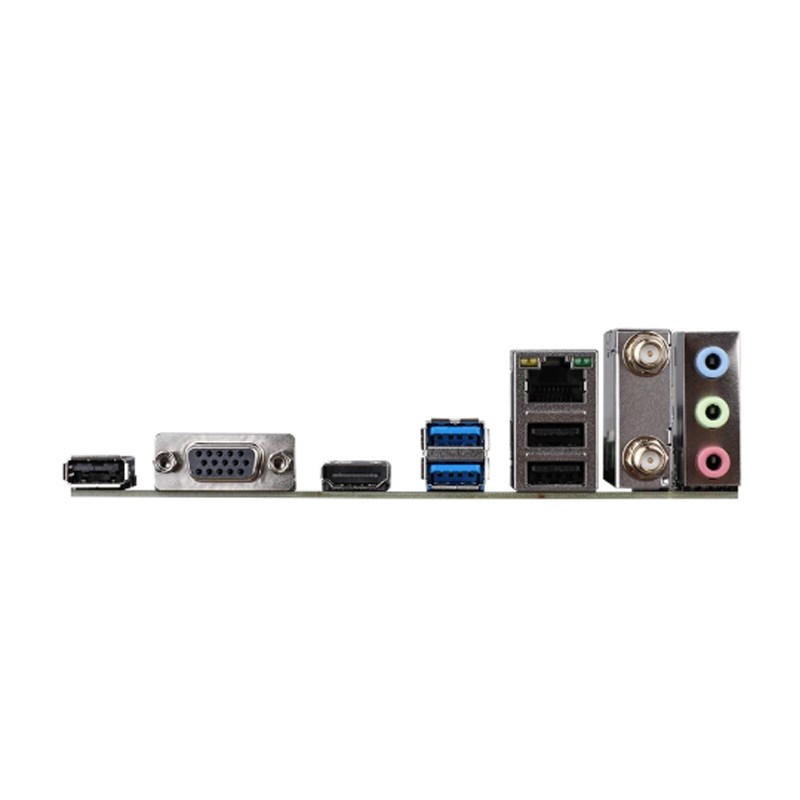

M.2 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel) Board I/O Rear I/O :
-3×USB 2.0 interfaces
-2×USB 3.2 Gen 1 Type-A interfaces
-1×HDMI 1.4 interface, supporting up to 4K 30Hz resolution
-1×VGA interface
-1×Gigabit network interface
-2×Wi-Fi 6 antenna interfaces
-3×Audio interfaces (audio input/audio output/microphone)
On board:
-1×CPU fan pin
-1×System fan pin
-1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×Clear CMOS jumper
-1×BIOS burner pin
-1×COM port pin Expansion Slots 1 PCIe 4.0 x16 slot
1 PCIe 3.0 x1 slot BIOS 128M UEFI, support multiple languages Power Management Support S3, S4, network S5 wake-up, support scheduled startup, call startup Hardware Monitor CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring LAN RTL8111H Gigabit network card, AX101 WiFi 6 wireless network card, Bluetooth 5.2 Audio Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels Configuration M-ATX
225mm x 180mm
