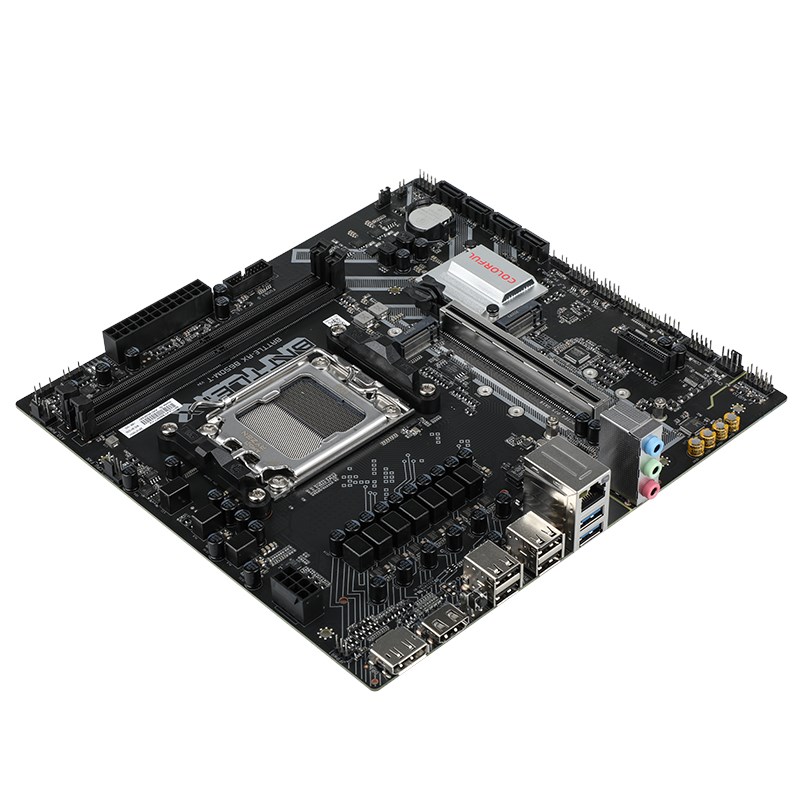

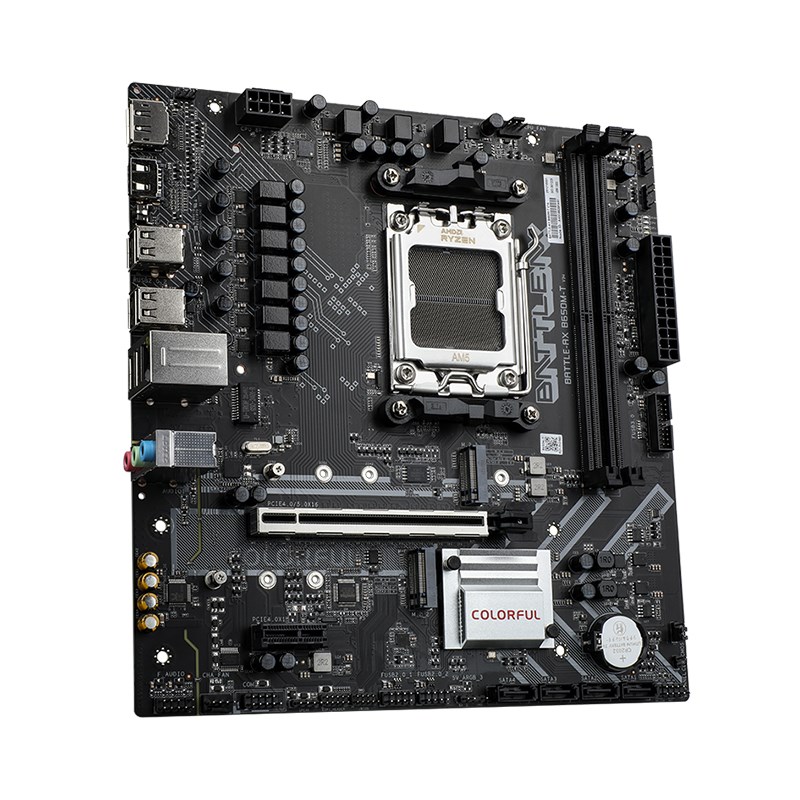

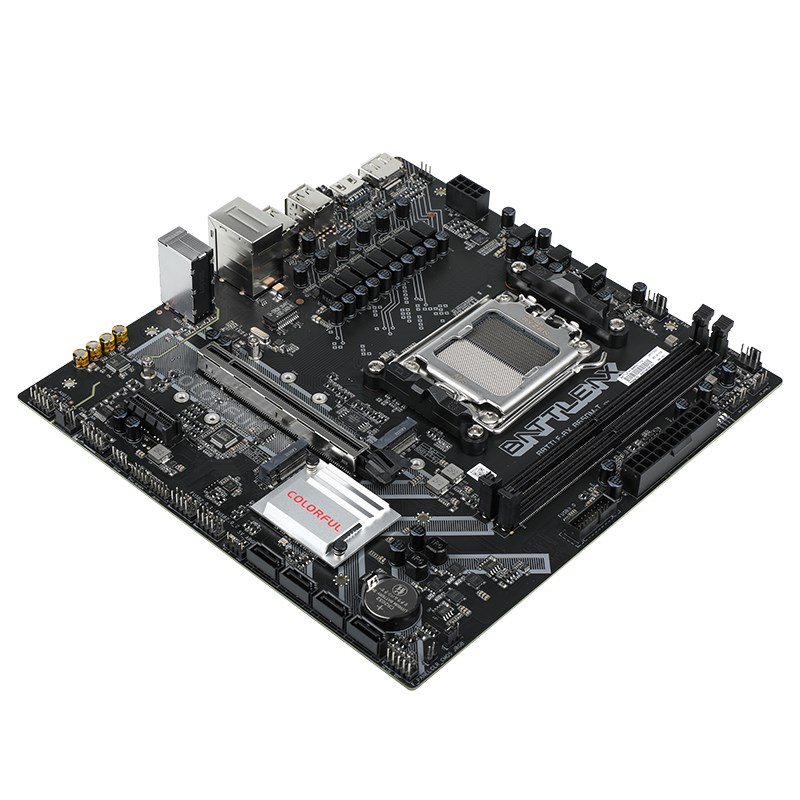

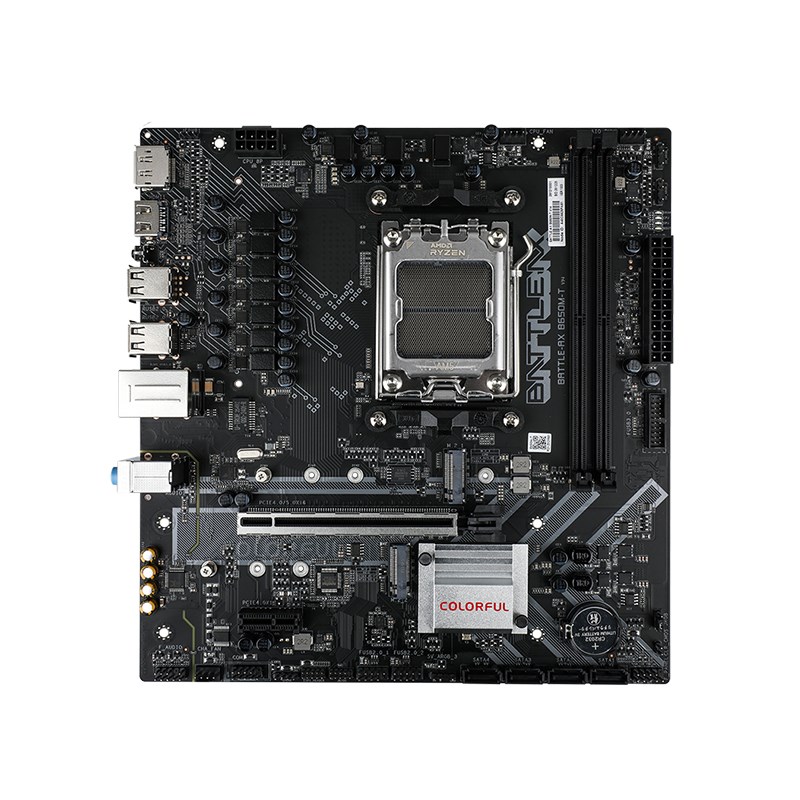

Colorful BATTLE-AX B650M-T V14 AMD AM5 DDR5 M-ATX Gaming Motherboard

Colorful BATTLE-AX B650M-T V14 AMD AM5 DDR5 M-ATX Gaming Motherboard

Provides 2 M.2 SSD slots, supporting PCIe 5.0 SSD.

Equipped with a 2.5G wired network card.

Supports iGame Center lighting control software, allowing synchronized adjustment of heatsink, cooling fan, and memory lighting effects.

I/O backplate supports one-click BIOS upgrade.

Six protection technologies ensure more stable product operation.

200 rigorous testing processes guarantee quality.

PCB atomization process has been fully upgraded.

Specification Model BATTLE-AX B650M-T V14 Product Series BATTLE-AX series Chipset AMD B650 Processor Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard Memory 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory)
- Support DDR5-7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Support EXtended Profiles for Overclocking (EXPO) memory technology
- Supports dual channel memory technology SATA Ports 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices
- M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
- M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, Chipset channel)
(Is it supported PCIe 5.0 is related to the CPU used with the motherboard)
Ryzen 9000 series: RAID 0/1/5/10
Ryzen 8000 series: RAID 0/1

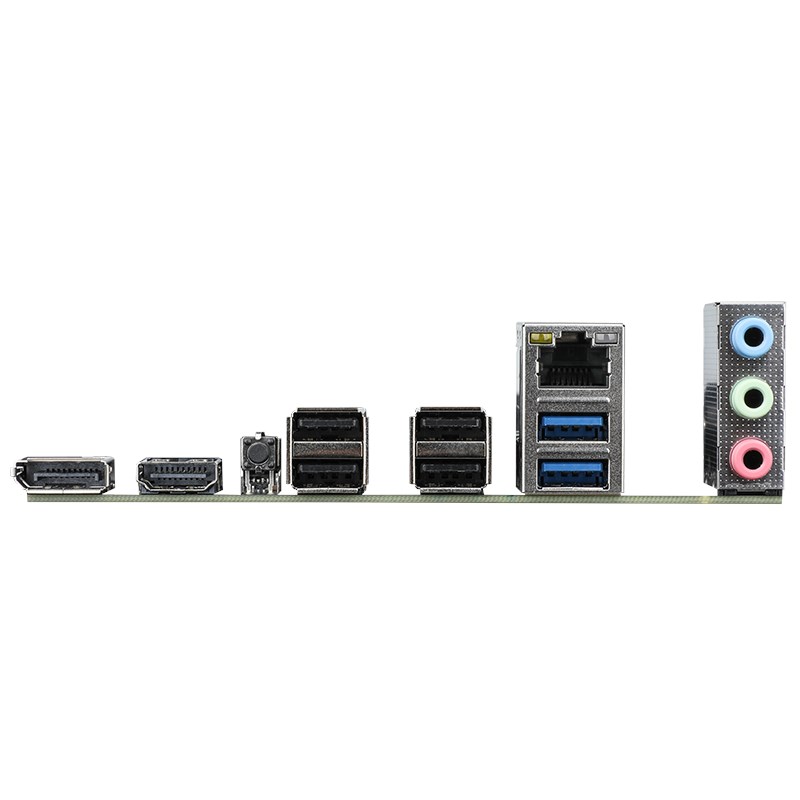

Ryzen 7000 series: RAID 0/1/10 Board I/O Rear I/O :
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 5Gbps Type-A interfaces
-1×DP 1.2 interface, supporting up to 4K 60Hz resolution
-1×HDMI 1.4 interface, supporting up to 4K 30Hz resolution
-1×2.5G network interface
-1×BIOS update button
-3×Audio interfaces (audio input/audio output/microphone)
On board :
-2×USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
-1×CPU fan pin
-1×System fan pin
-1×Water cooling pump pin
-3×5V 3-pin ARGB pins
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×COM port pin
-1×Clear CMOS jumper
-1×BIOS burner pin
-1×RGB lighting effect control jumper
-1×POST card pin Expansion Slots 1 PCIe 5.0 x16 slot
1 PCIe 4.0 x1 slot BIOS 256M UEFI, support multiple languages Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring LAN RTL8125BG 2.5Gbit network card Audio Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels Configuration M-ATX
230mm x 220mm
