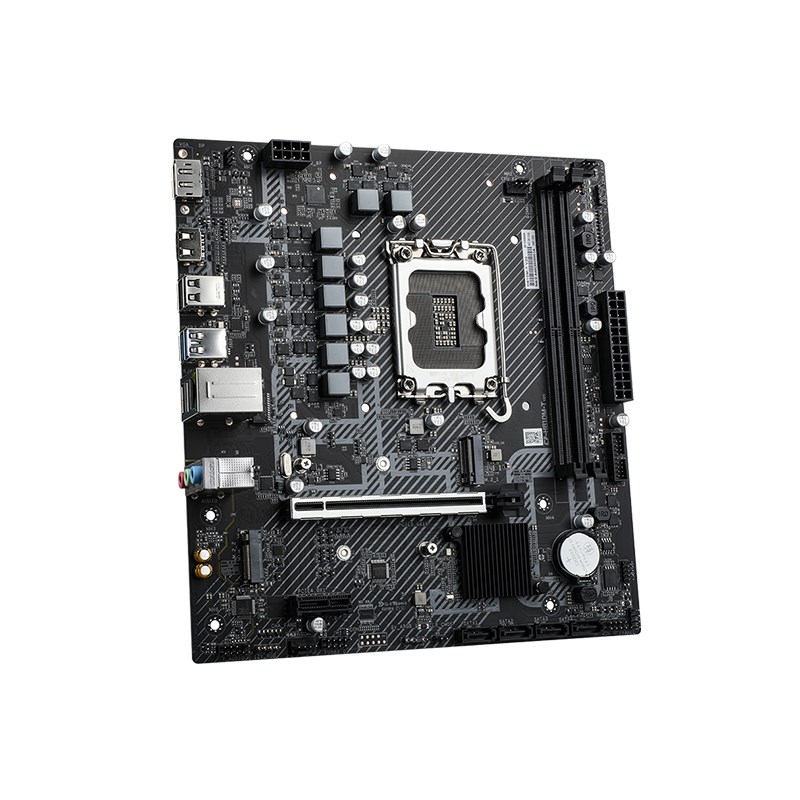

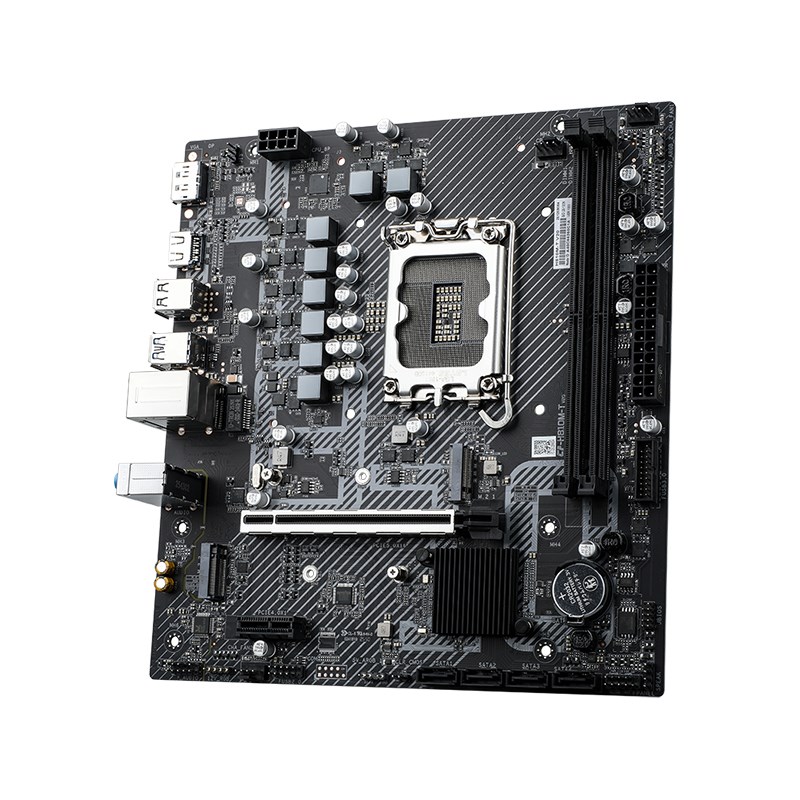

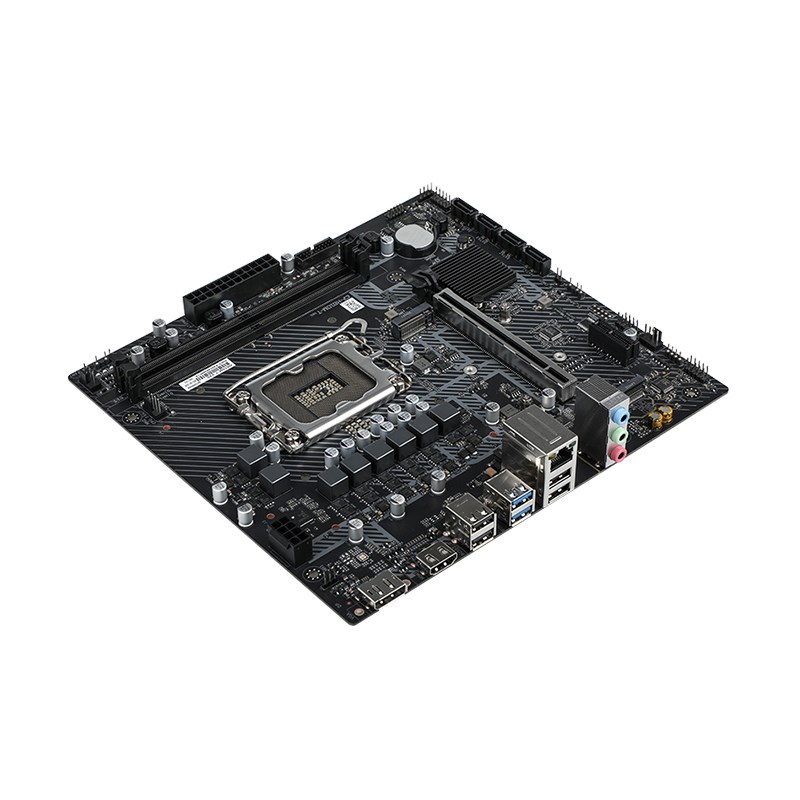

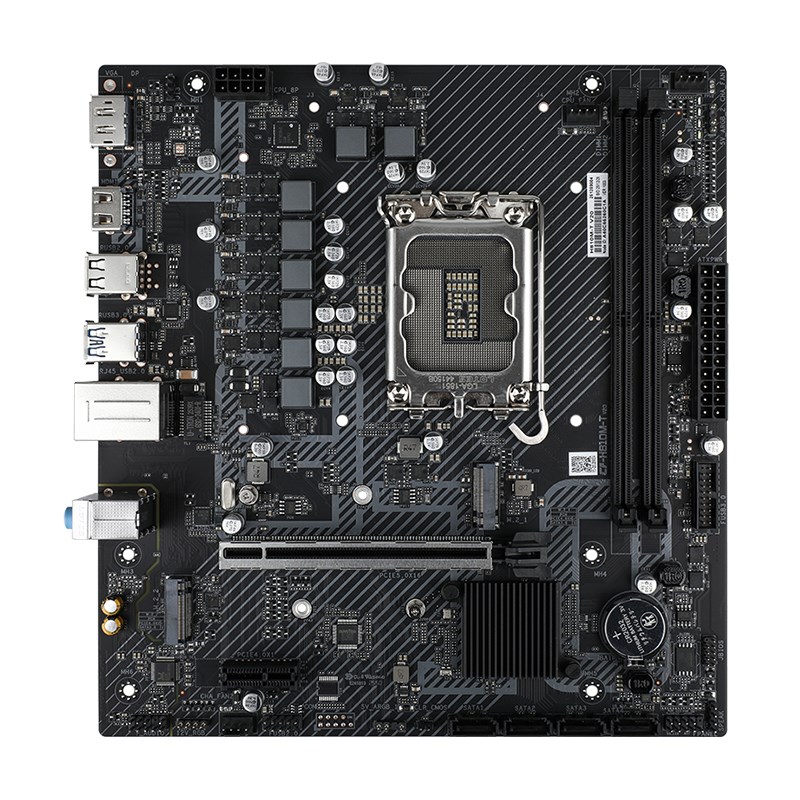

Colorful H810M-T V20 DDR5 M-ATX Gaming Motherboard

Colorful H810M-T V20 DDR5 M-ATX Gaming Motherboard

Intel H810 chipset

Supports dual-channel DDR5-6400MHz memory

Provides 2 PCIe M.2 SSD slots

Includes HDMI + DP display interfaces

Equipped with Intel I219-V Gigabit Ethernet controller

Equipped with Realtek ALC897 sound chip, supporting up to 7.1 channels

Rear: 2 USB 3.2 Gen 1 Type-A ports, 4 USB 2.0 ports

Front: 2 USB 3.2 Gen 1 Type-A ports, 2 USB 2.0 ports

Specification Model H810M-T V20 Product Series Colorful series Chipset Intel H810 Processor Supports Intel Core Ultra processors that fit the LGA 1851 slot of the motherboard Memory 2 DDR5 memory slots, supporting up to 96 GB of memory (a single slot can support a capacity of up to 48 GB)
- Support DDR5-6400/6200/6000/5800/5600/5200/4800MHz memory
- Support Intel Extreme Memory Profile (XMP) memory technology
- Support dual channel memory technology SATA Ports 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces
- M.2_1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, Chipset channel)

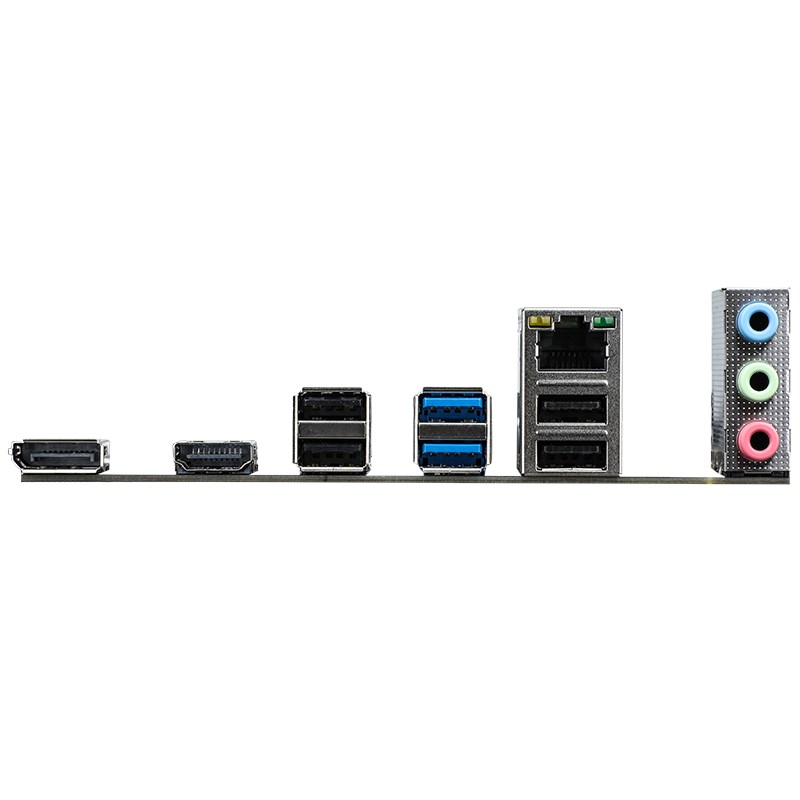

- M.2_2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x2, Chipset channel) Board I/O Rear I/O:
- 4×USB 2.0 interfaces
- 2×USB 3.2 Gen 1 5Gbps Type-A interfaces
- 1×DP 1.2 interface, Supports up to 4K 60Hz resolution
- 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
- 1×Gigabit network interface
- 3×Audio interfaces
On board:
- 1×USB 2.0 pins can expand 2 USB 2.0 Type-A interfaces
- 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
- 1×CPU fan pin
- 2×System fan pins
- 2×5V 3-pin ARGB pins
- 1×12V 4-pin RGB pin
- 1×Front audio pin
- 1×Front panel pin
- 1×Speaker pin
- 1×BIOS burner pin
-1×Clear CMOS jumper Expansion Slots 1×PCIe 5.0 x16 slot
1×PCIe 4.0 x1 slot BIOS 256M UEFI，support multiple languages Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring LAN Intel I219-V Gigabit Ethernet Audio Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels Configuration M-ATX
225mm x 210 mm
