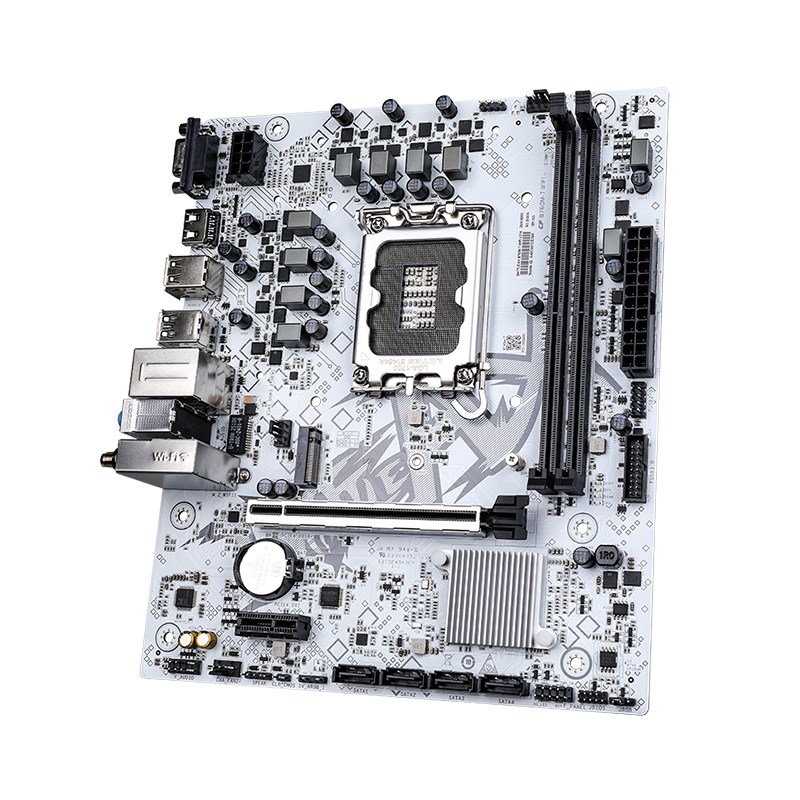

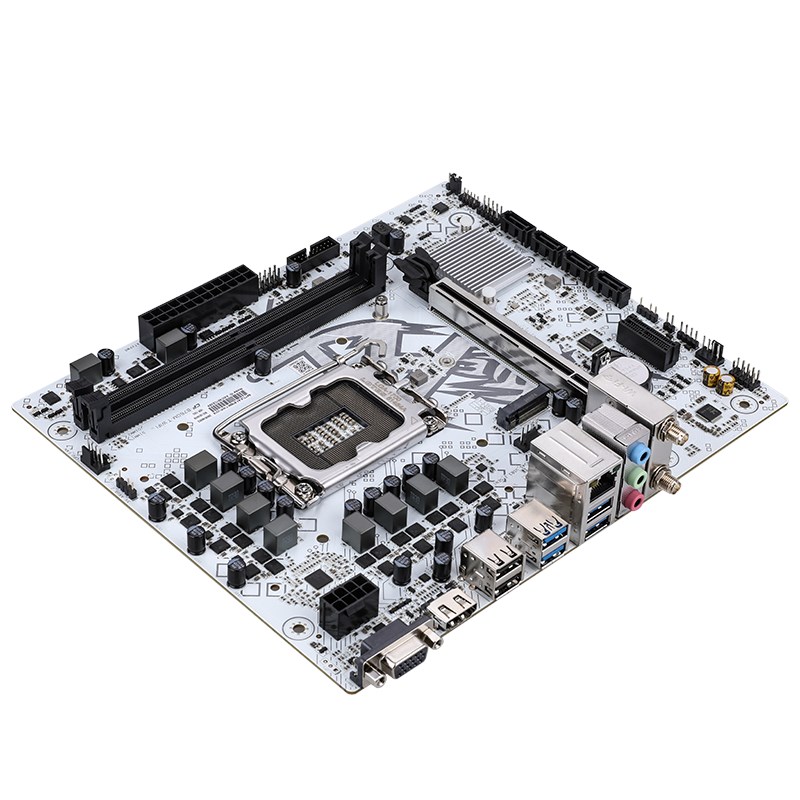

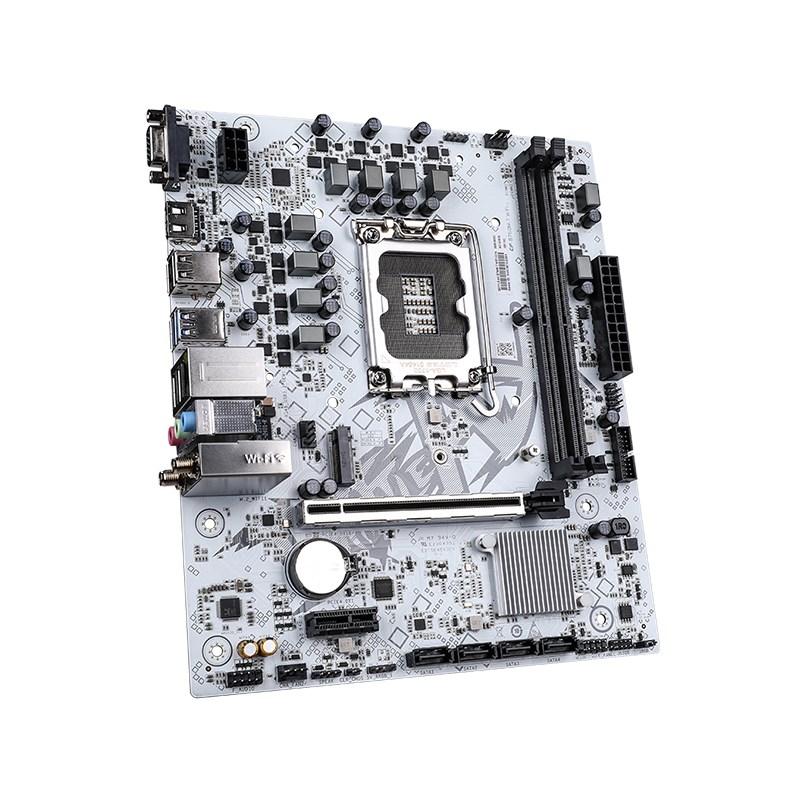

Colorful BATTLE-AX B760M-T WIFI V21A DDR5 M-ATX Gaming Motherboard
Provides 4 USB 3.2 Gen 1 Type-A high-speed interfaces
Provides 2 USB 2.0 interfaces
Provides 1 PCIe 4.0 x4 M.2 SSD slot
Provides 2 5V 3-pin ARGB pins, supports iGame Center lighting control software
Provides HDMI+VGA display interface
Supports iGame Center lighting control software, can synchronously adjust the lighting effects of the radiator, cooling fan and memory
Six major protection technologies, more stable product operation
200 process strict testing, quality guaranteed
PCB atomization process fully upgraded
Price
Prices depend on your account and the quantity you buy, so they are not published.
Description
Provides 4 USB 3.2 Gen 1 Type-A high-speed interfaces
Provides 2 USB 2.0 interfaces
Provides 1 PCIe 4.0 x4 M.2 SSD slot
Provides 2 5V 3-pin ARGB pins, supports iGame Center lighting control software
Provides HDMI+VGA display interface
Supports iGame Center lighting control software, can synchronously adjust the lighting effects of the radiator, cooling fan and memory
Six major protection technologies, more stable product operation
200 process strict testing, quality guaranteed
PCB atomization process fully upgraded
Specification Model BATTLE-AX B760M-T WIFI V21A Product Series BATTLE-AX series Chipset Intel B760 Processor Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor Memory 2 DDR4 memory slots, supporting up to 64 GB memory (single slot supports up to 32 GB)- Supports DDR4-4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2800/2666/2400/2133MHz memory
- Supports Intel Extreme Memory Profile (XMP) memory technology
- Supports dual-channel memory technology SATA Ports 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces, supports creating RAID 0, RAID 1, RAID 5, RAID 10 disk arrays with SATA hard disk devices

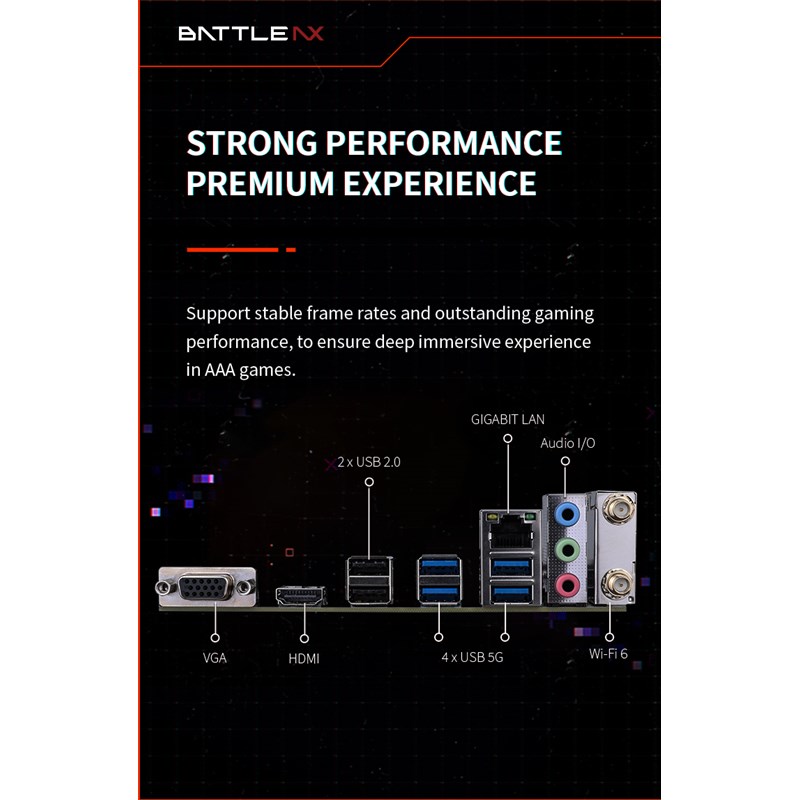

- M.2_1 slot: supports 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) Board I/O Rear I/O :
-2×USB 2.0 interfaces
-4×USB 3.2 Gen 1 Type-A interfaces
-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
-1×VGA interface
-1×Gigabit network interface
-2×Wi-Fi 6 antenna interfaces
-3×Audio interfaces (audio input/audio output/microphone)
On board:
-1×CPU fan pin
-2×System fan pins
-1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces
-2×5V 3-pin ARGB pins
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×Clear CMOS jumper
-1×BIOS burner pin
-1×Lighting control jumper Expansion Slots 1 PCIe 5.0 x16 slot
1 PCIe 4.0 x1 slot BIOS 128M UEFI, support multiple languages Power Management Support S3, S4, network S5 wake-up, support scheduled startup, call startup Hardware Monitor CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring LAN RTL8111H/RTL8111M Gigabit LAN, AX101 WiFi 6 wireless LAN, Bluetooth 5.2 Audio Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels Configuration M-ATX
225mm x 190mm
