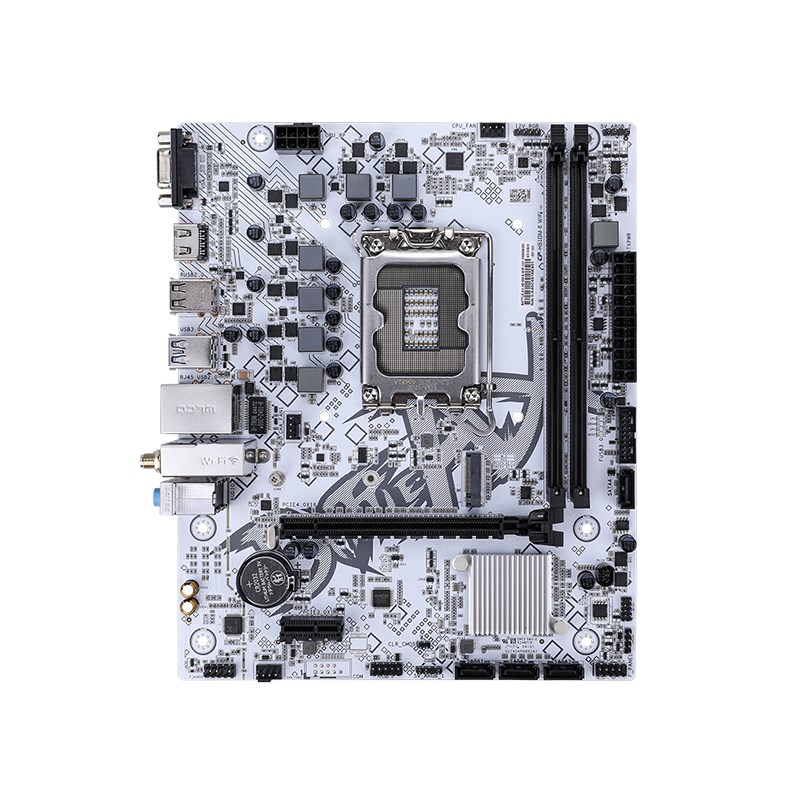

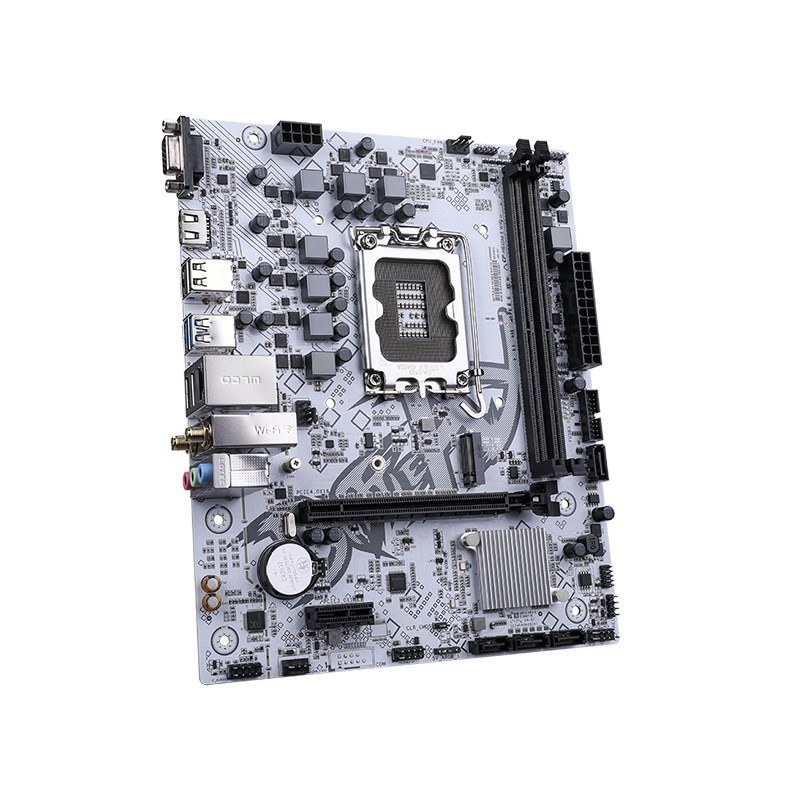

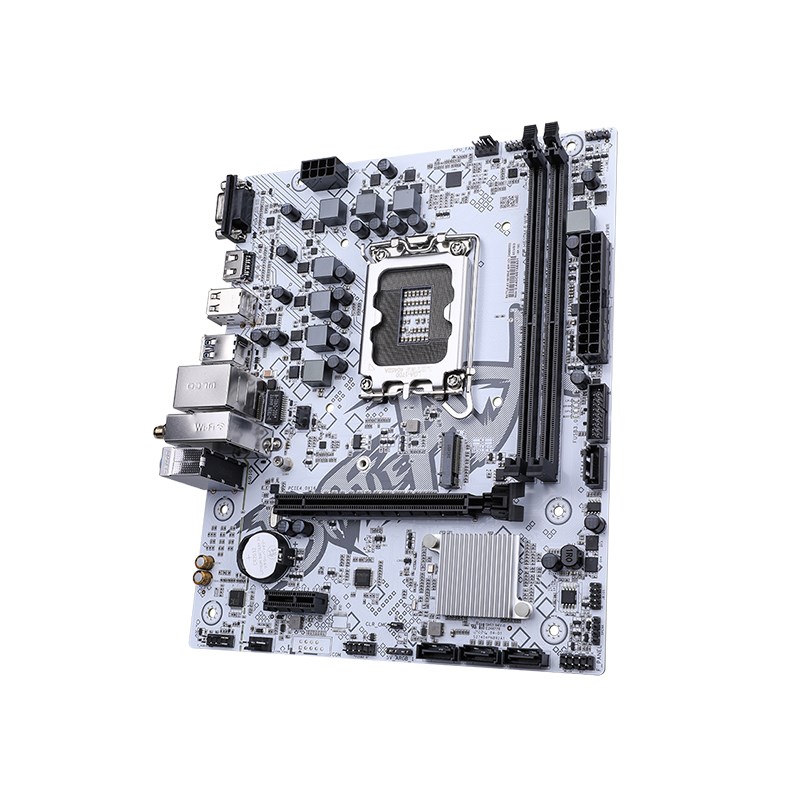

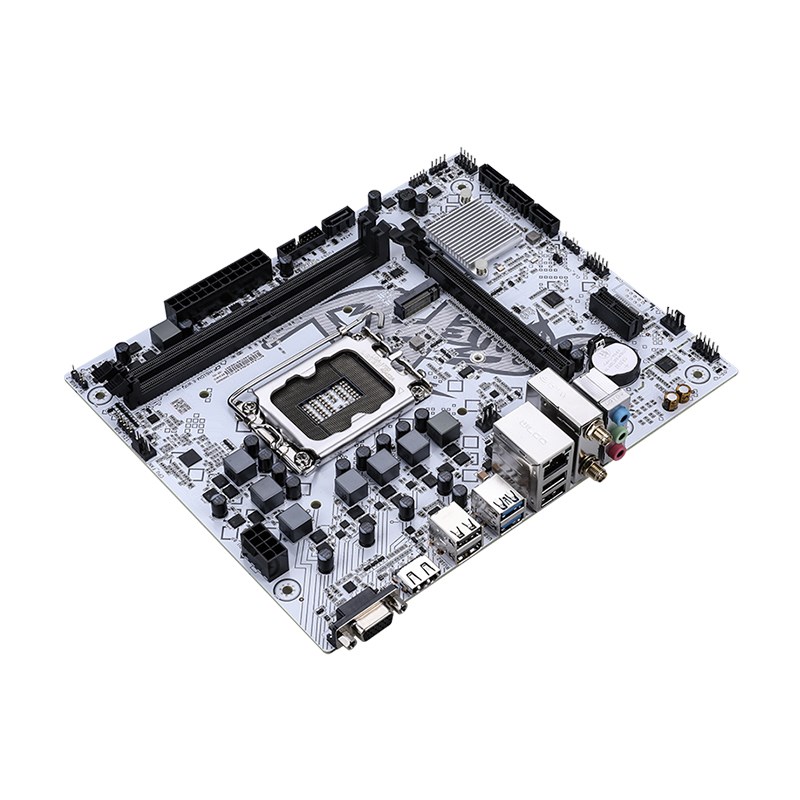

Colorful BATTLE-AX H610M-E WIFI V21A DDR4 M-ATX Gaming Motherboard

Colorful BATTLE-AX H610M-E WIFI V21A DDR4 M-ATX Gaming Motherboard

Intel H610 chipset

Supports dual channel DDR4-3200MHz memory

Provide 1 PCIe 3.0 x4 M.2 SSD slot

Equipped with HDMI+VGA display interface

Equipped with Realtek 8111H Gigabit wired network card and AX101 WiFi 6 wireless network card, supporting Bluetooth 5.2

Equipped with Realtek ALC897 sound card chip, supporting up to 5.1 channels

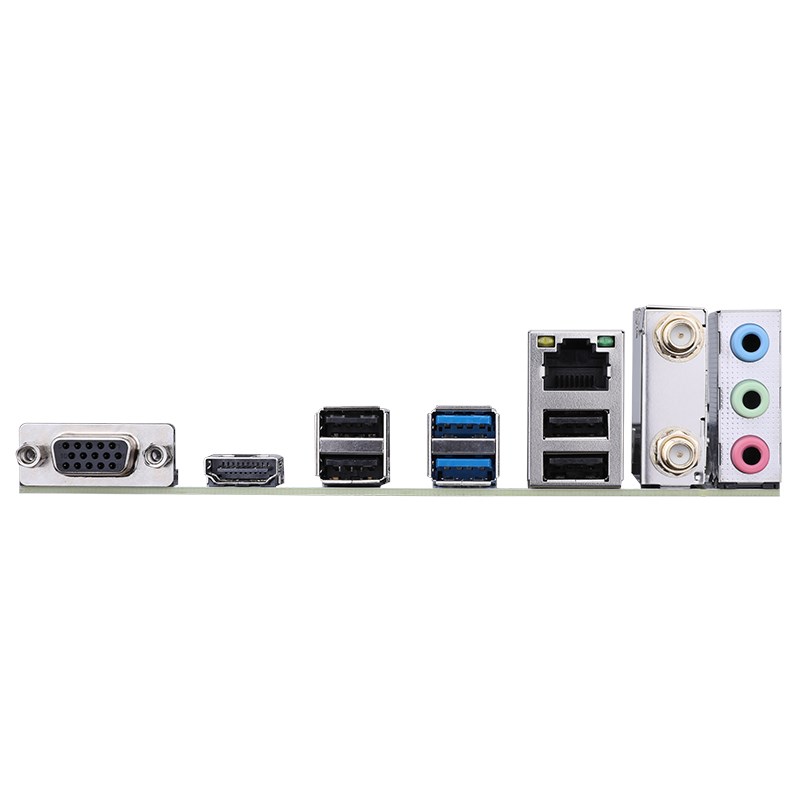

Rear: 2 USB 3.2 Gen 1 Type-A ports, 4 USB 2.0 ports

Front end: 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces

Specification Model BATTLE-AX H610M-E WIFI V21A Product Series BATTLE-AX series Chipset Intel H610 Processor Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor Memory 2 DDR4 memory sockets are provided, which can support up to 64 GB of memory (a single socket can support up to 32 GB of memory)
- Support DDR4-3200/2933/2666/2400MHz memory
- Supports dual channel memory technology SATA Ports 1 M.2 slot and 4 SATA 6Gb/s hard drive interfaces
- M.2 slot: Supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel) Board I/O Rear I/O :
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 Type-A interfaces
-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
-1×VGA interface
-1×Gigabit network interface
-2×Wi Fi 6 antenna interfaces
-3×Audio interfaces (audio input/output/microphone)
On board :
-1×CPU fan pin
-2×System fan pins
-1× USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
-2×5V 3-pin ARGB pins
-1×12V 4-pin RGB pin
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×Clear CMOS jumper
-1×BIOS burner pin Expansion Slots 1 PCIe 4.0 x16 slot
1 PCIe 3.0 x1 slot BIOS 128M UEFI, support multiple languages Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring LAN RTL8111H Gigabit Ethernet, AX101 WiFi 6 wireless network card, Bluetooth 5.2 Audio Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels Configuration M-ATX
225mm x 185mm
